Filterra® Bioscape® in Auckland

Integrated Stormwater Treatment at an Auckland Commercial Development



Project Objective:

The client’s objective was to maximise land yield across a large shopping centre and adjoining carpark in Auckland, while meeting regulatory requirements and achieving robust water quality outcomes. Given the site’s commercial scale, space efficiency, and high-performance treatment were essential.



Stormwater Strategy:

To balance performance with spatial constraints, an integrated Green Infrastructure solution was selected. This approach delivered superior pollutant removal while aligning with modern, sustainable design standards.



Treatment Train Overview:

The site was divided into two primary catchments, each with a tailored system to address both gross pollutant removal and fine filtration.


Catchment 1 – 32,371 m²
Cascade Separator™ CS6 (pre-treatment / Gross Pollutant Trap)

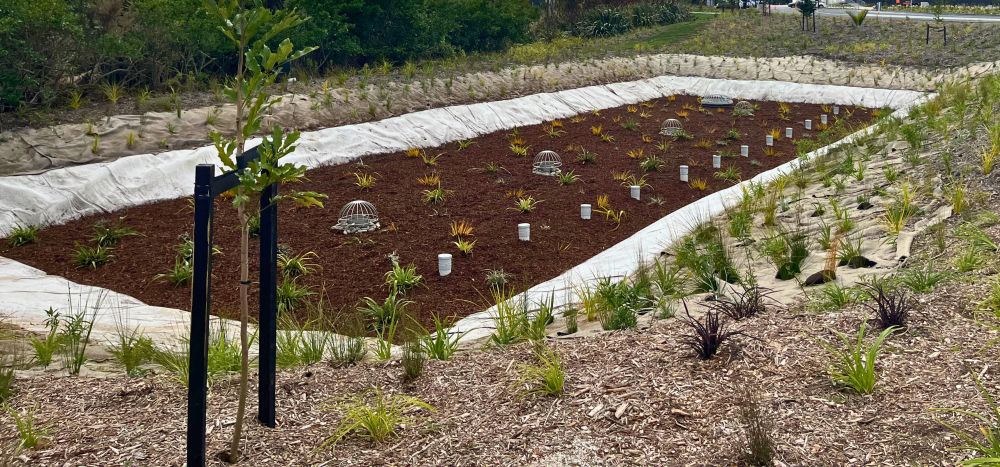

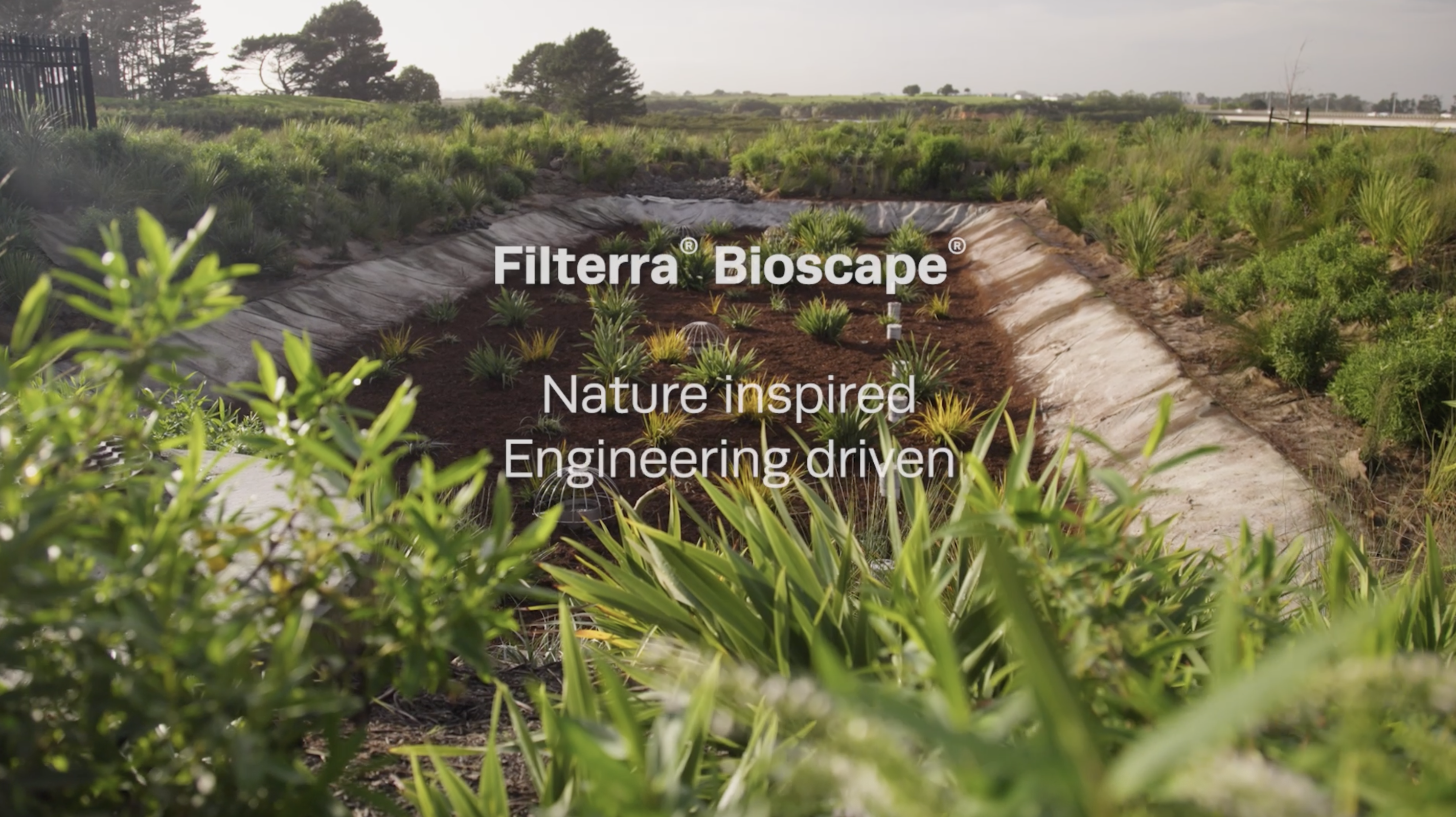

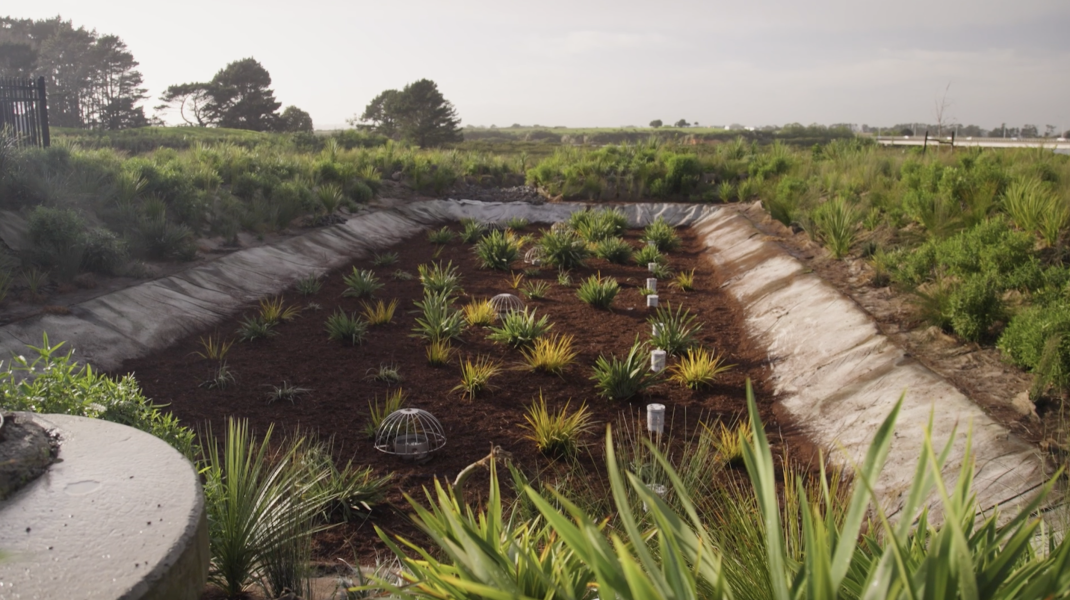

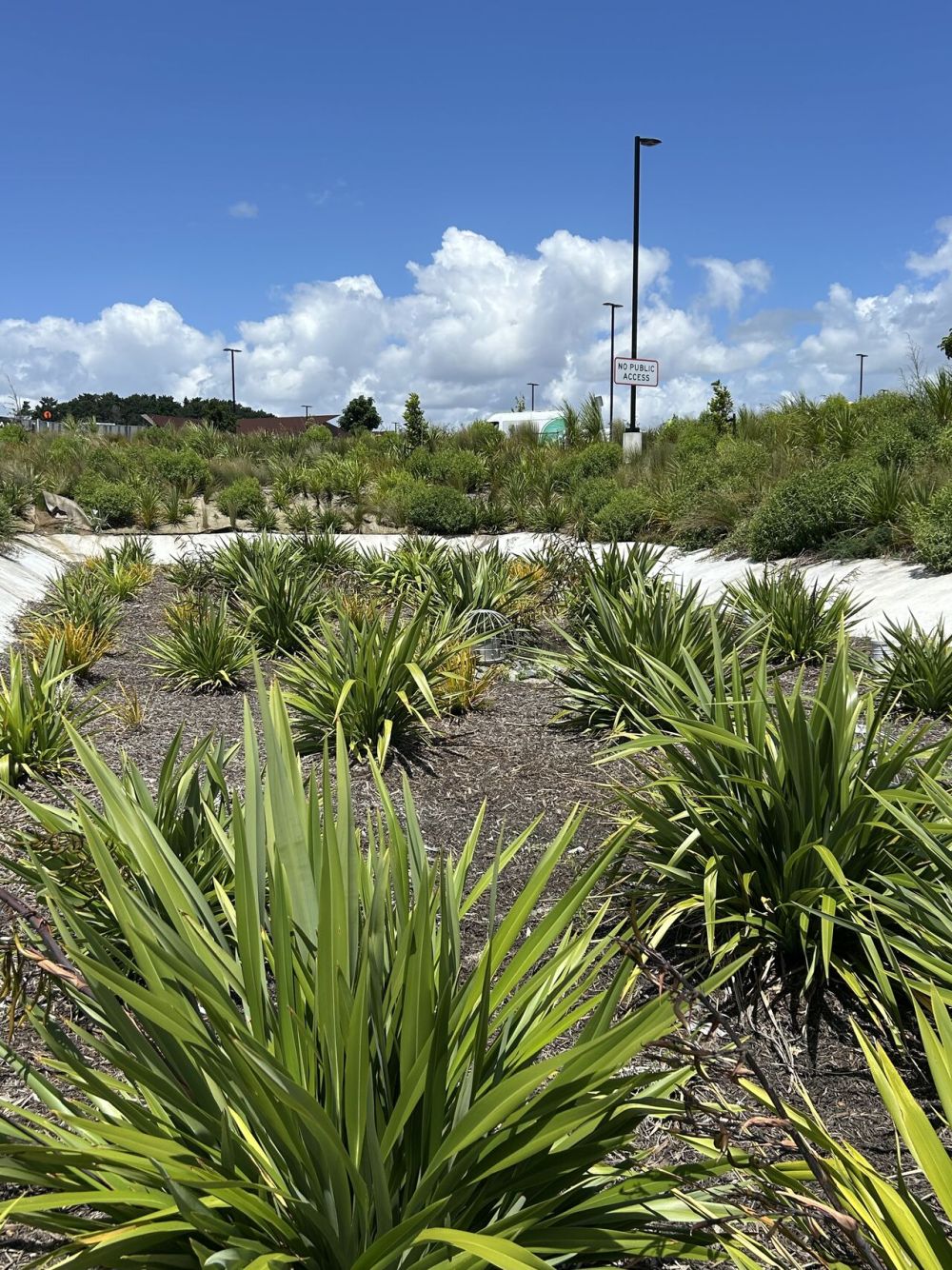

125m² Filterra® Bioscape® (bioretention for fine pollutant removal)


Catchment 2 – 39,243 m²
Cascade Separator™ CS6 (pre-treatment / Gross Pollutant Trap)

150m² Filterra® Bioscape®


The Cascade Separator™ removes gross pollutants, sediments, and floatables upstream, while the Filterra® Bioscape®provides high-performance bioretention, consistently removing TSS, nutrients, metals, and hydrocarbons.



LittaTrap™ Deployment:

As part of the site-wide strategy, 108 LittaTrap™ units were installed throughout the carpark area.
These devices provide:
Primary role: Acting as Gross Pollutant Traps at source—intercepting plastics, trash, and debris before they enter the stormwater network.

Secondary role: Enabling hotspot monitoring and analysis to assess pollutant loads, identify contamination trends, and support targeted future maintenance or upgrades.



Key Outcomes:

Maximised land use without compromising stormwater treatment performance.
Achieved high pollutant removal within a compact footprint.
Delivered a modular, scalable system adaptable for future expansion.
Prevented trash pollution at source, improving downstream water quality.

Maintenance:

Filterra® Bioscape® is simple and low-cost to maintain, with a 6-monthly replacement for the mulch layer. This can be done by hand maintenance or by a vactor truck to suck up the mulch, and then a mulch blower to reapply the mulch.


Cascade Separator™ follows an inspect-to-maintain service, ensuring the system remains fully functional with minimal maintenance required between service intervals.


LittaTrap™ can be maintained by hand or by a vactor truck. Hand maintenance is simple; Lift the LittaTrap™, Tip out the LittaTrap™ into a rubbish bin and then simply replace the LittaTrap™ back into the drain.


Conclusion:

This project showcases how thoughtful design and smart product integration can deliver high-yield, high-performance stormwater outcomes in challenging commercial environments. By combining LittaTrap™, Cascade Separator™, and Filterra® Bioscape® technology, the site now benefits from low-maintenance, long-term sustainable stormwater infrastructure that meets today’s needs while supporting future growth.
