VortCapture™

Full capture Gross Pollutant Trap with 5mm Screen

Design Your Own Enquire Now

Download Brochure

VortCapture™ is a full capture, high-capacity litter, debris & sediment solution.

Designed to remove all particles greater than 5mm in size, the system combines the proven sediment removal capability of hydrodynamic separation with superior litter and organic debris capture. The result is a stormwater treatment system that effectively captures and retains a broad range of pollutants. Integrated high flow diversion and a flexible, compact design make it ideal for congested sites, ensuring optimal performance even in limited spaces.

The system also provides unobstructed access to stored pollutants, simplifying maintenance efforts, while an integrated screen efficiently removes neutral buoyant debris, enhancing overall pollutant capture efficiency.

Auckland

Christchurch

All regional councils

Stormwater360 Online Maintenance Training is live Field Trip May 2023 What is a Life Cycle Cost Analysis?

5mm

capture

all pollutants greater than 5mm in size

Increase

maintenance

period of primary treatment system when used as pre-treatment

structure

Treatment and internal bypass in one structure

Improve

aesthetics

to downstream conventional treatment solutions by capturing all litter

VortCapture™

Start project Close Get Started

Or call us on 0800 STORMWATER

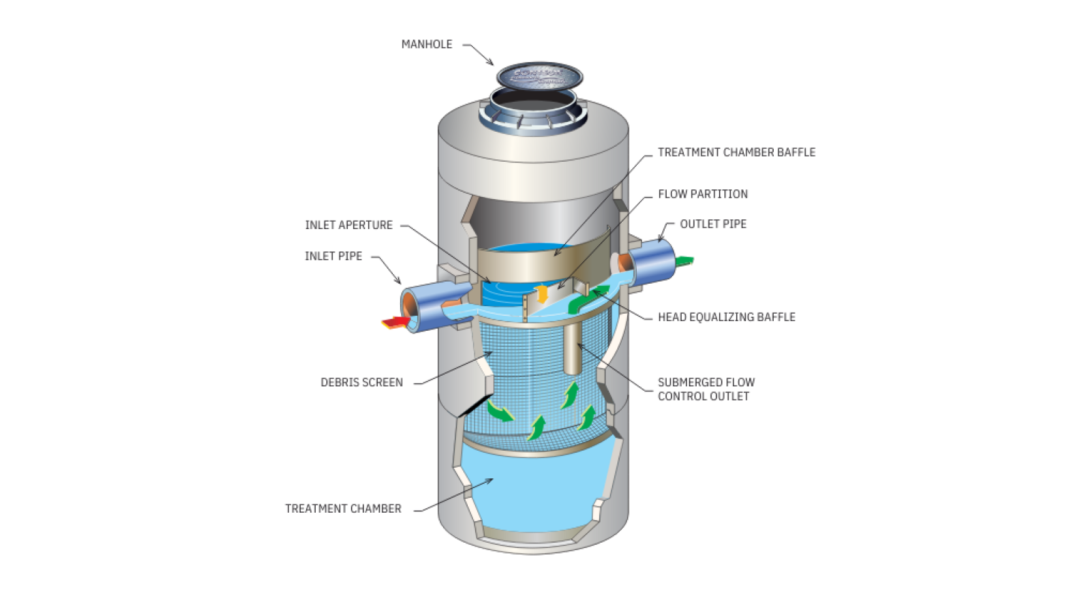

How it works

01 Stormwater runoff enters VortCapture

Stormwater runoff enters the unit tangentially to promote a swirling motion in the screened treatment chamber

02 Stormwater runoff is treated

High relative tangential velocities (across the screen face vs. through the screen) indirectly screen for pollutants while also scouring the screen to prevent blinding. Treatment continues as polluted water circles within the chamber and settleable solids fall into, and are retained, in the sump.

03 Treated water exits

Treated water exits the treatment chamber through a submerged flow control outlet located behind the debris screen. A flow partition and head equalising baffle reduce the potential for resuspension or washout of captured pollutants during higher flow conditions.

Benefits

Treatment Efficiency

Treatment and Internal Bypass: VortCapture offers treatment and internal bypass functionalities within a single structure, ensuring efficient stormwater treatment without compromising performance.
Greater Sediment Particle Removal: VortCapture excels at removing sediment particles even at lower flow rates, ensuring thorough pollutant removal from stormwater runoff.

Compact Design

Ideal for Congested Sites: With its compact design, VortCapture is perfectly suited for congested sites where space is limited, providing effective stormwater management solutions even in confined areas.
Integrated Screen: VortCapture features an integrated screen to remove neutral buoyant debris, enhancing its efficiency in capturing a wide range of pollutants.

Easy Installation and Maintenance

Lightweight Construction: Featuring a round and lightweight construction, VortCapture is easy to handle and install, reducing installation time and labor costs.
Unobstructed Maintenance Access: VortCapture provides unobstructed access for maintenance, facilitating easy inspection and cleaning to ensure consistent performance over time.
